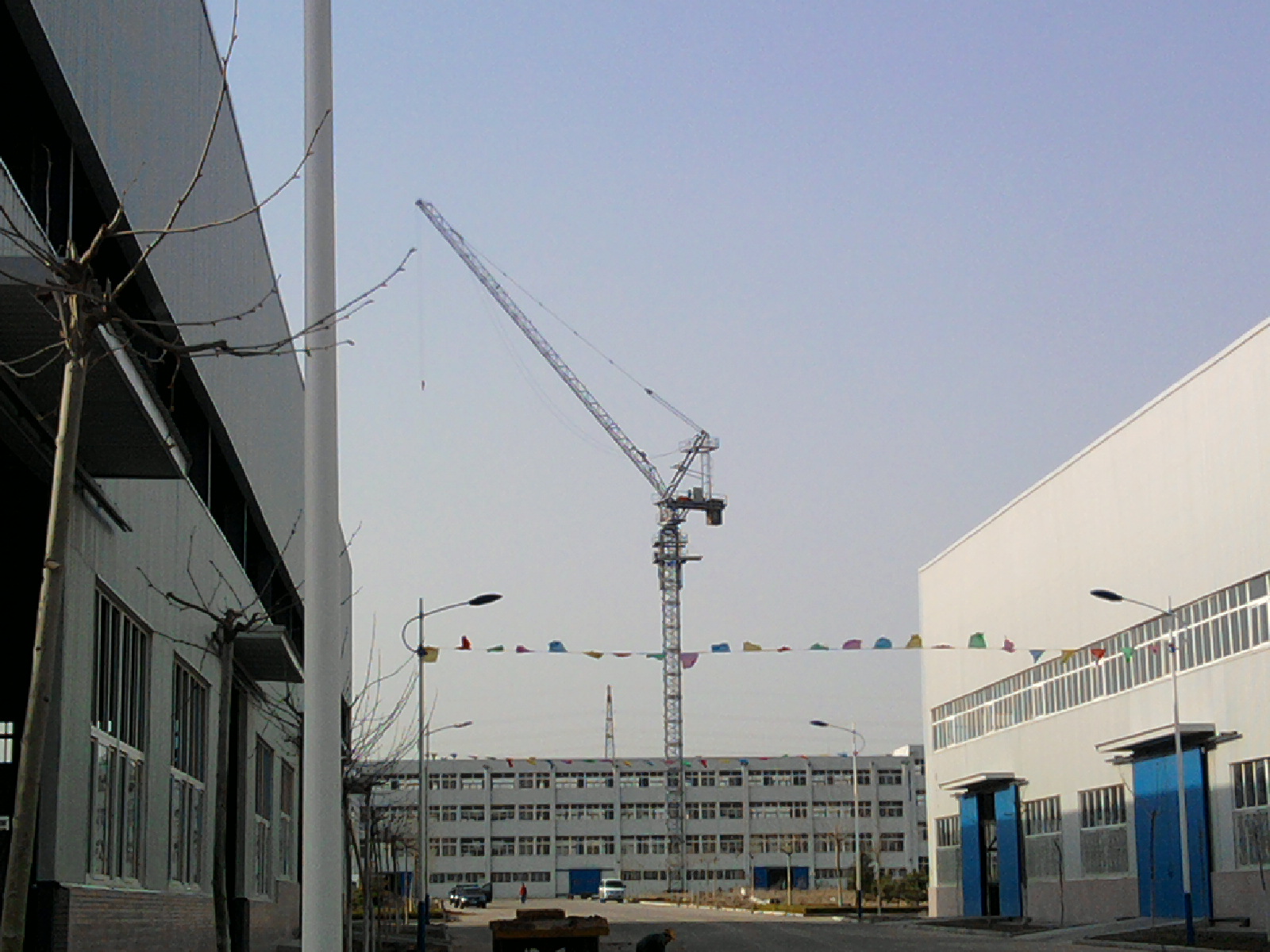

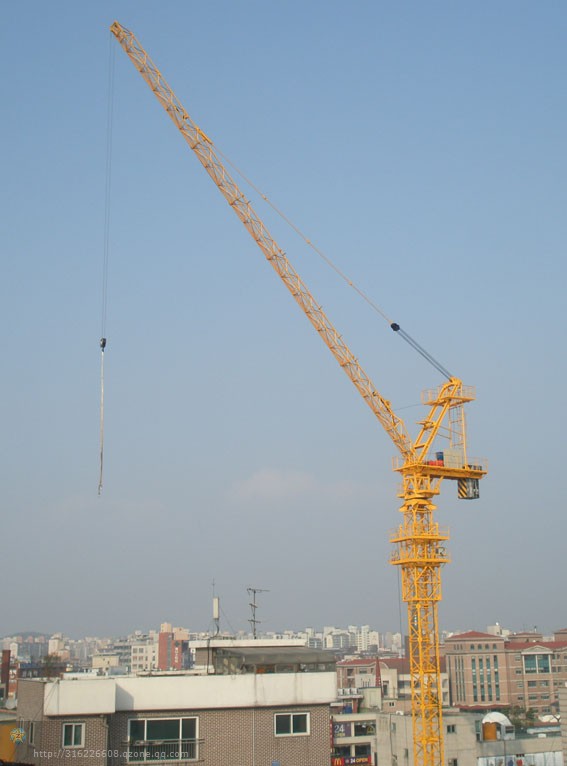

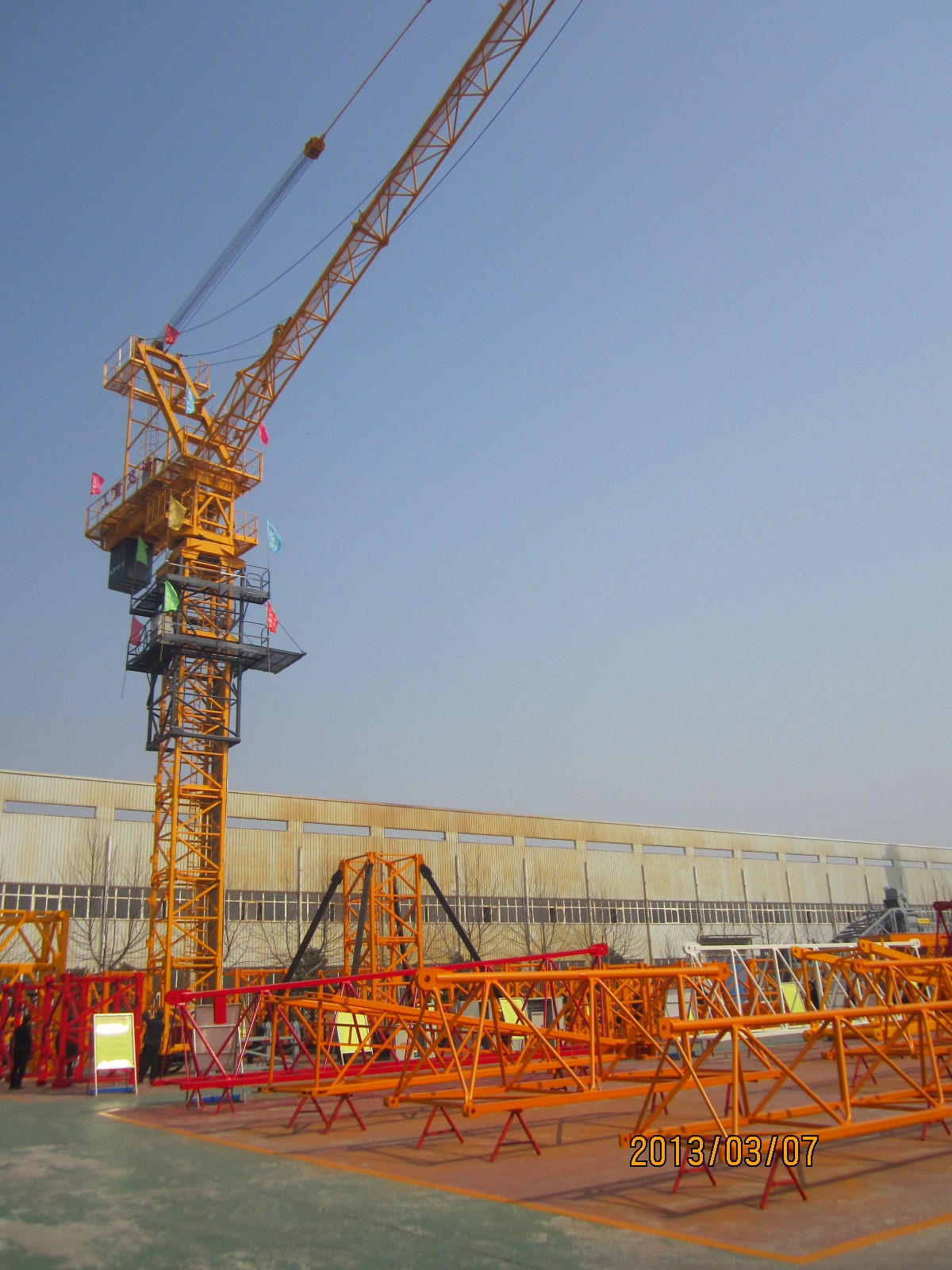

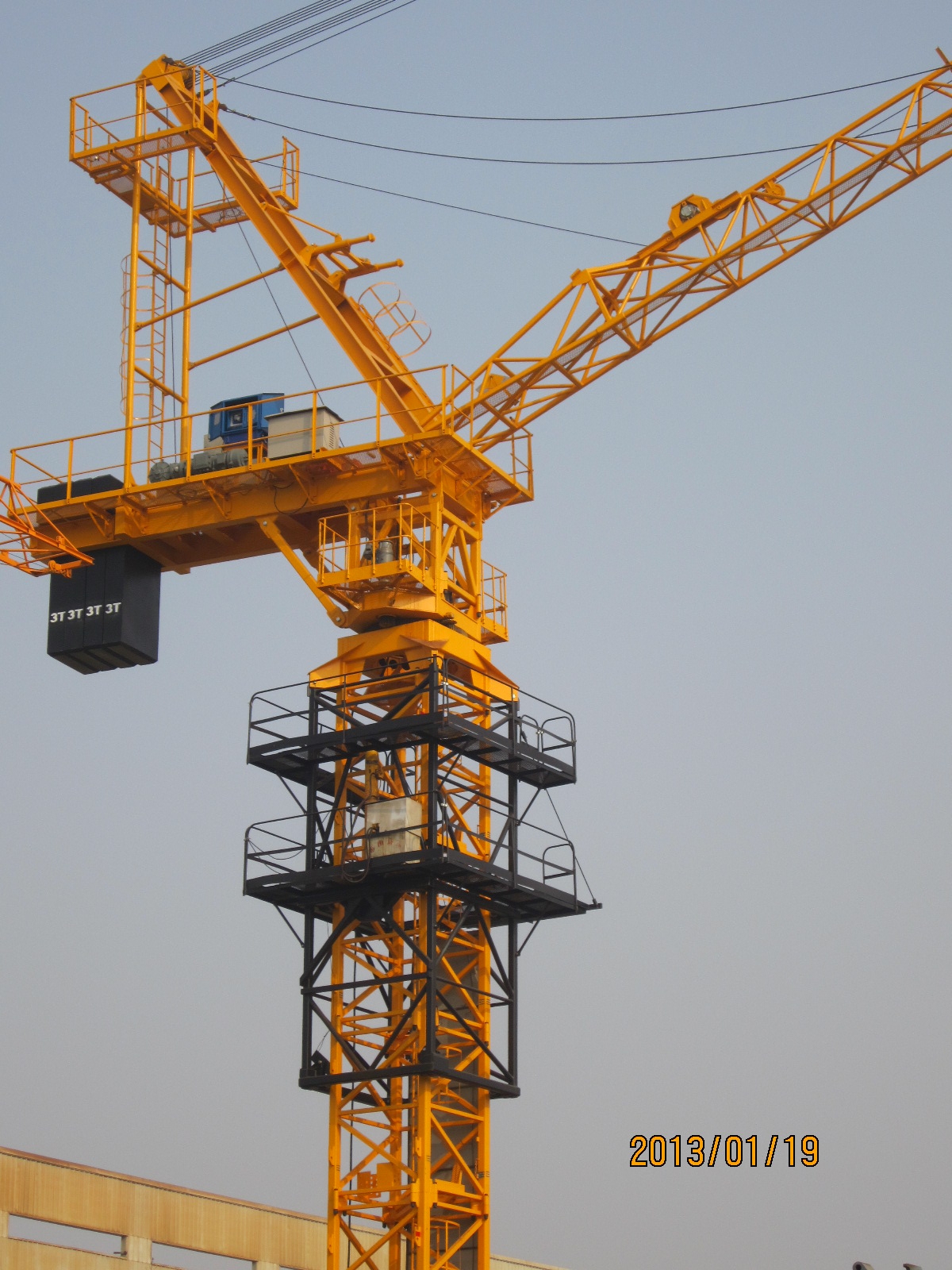

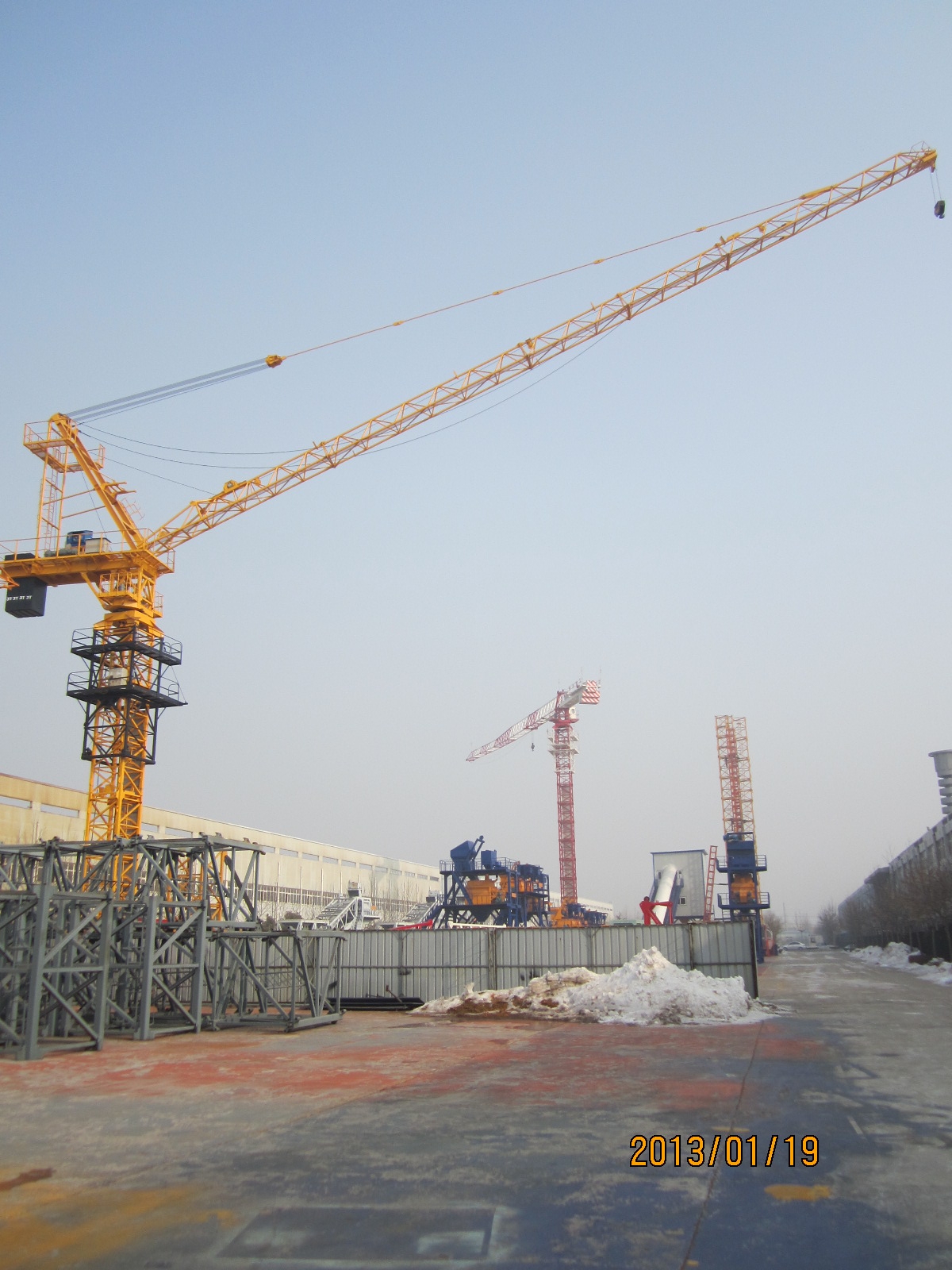

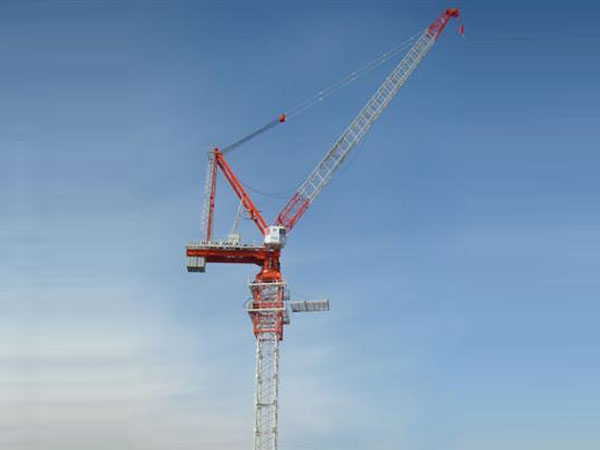

产品名称: SF180(5024)
产品分类: luffing tower crane
公司名称: 山东鸿达建工集团
联系电话: 151 6687 9287/185 6380 8068
联系地址: 山东省莱阳市龙门东路26号
添加时间: 20/03/03

产品详情

产品询盘

I. Main Technical Parameters and Price

Model	SF180(5024)
Jib Length (M)	50
Height (M)	41.5
Tip Load (T)	2.4
Main Material (mm)	13513512（square steel tube）

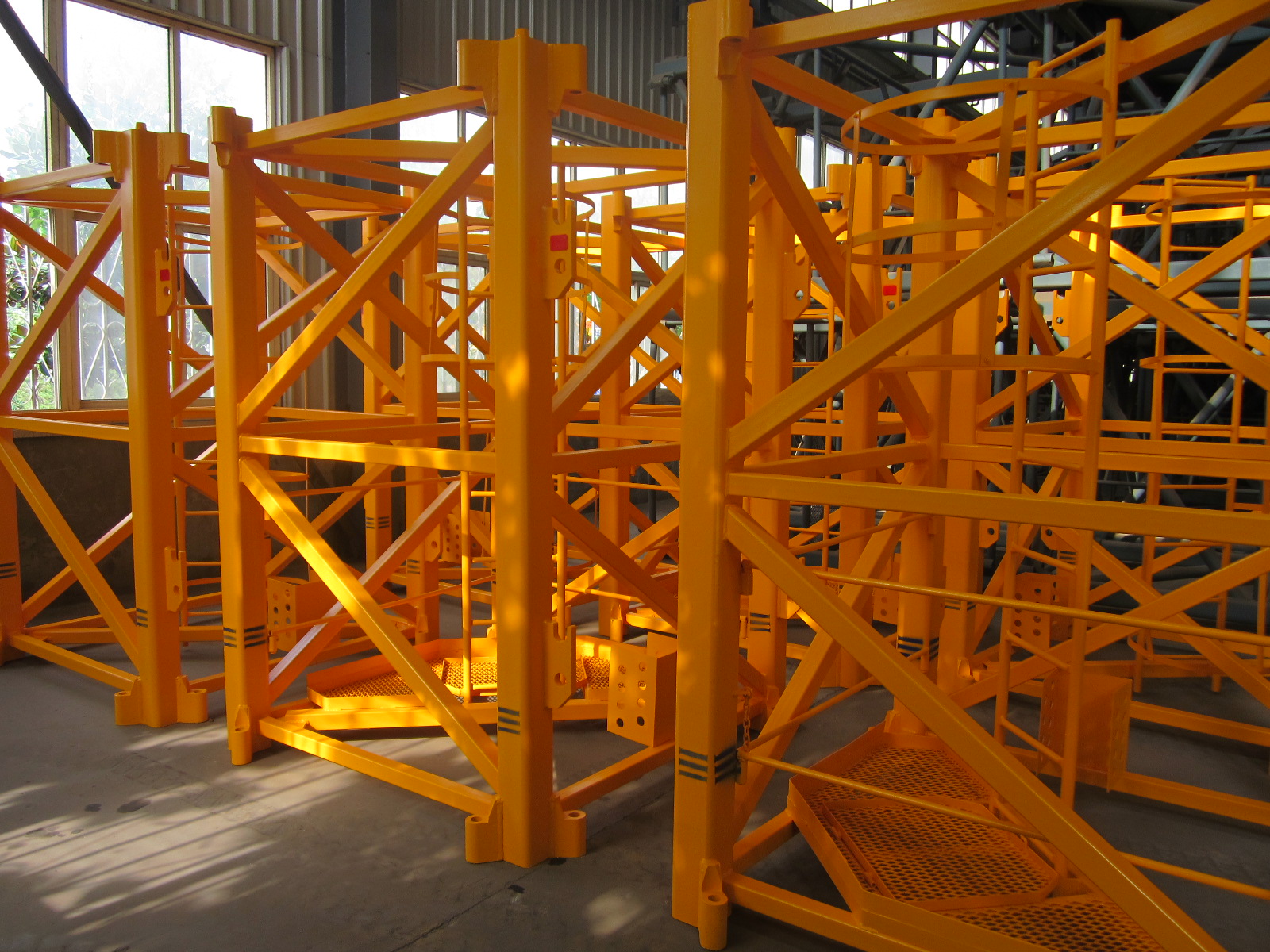

Mast Section Dimension (m)	1.84×1.84×2.5
voltage	380V/50HZ
Hoisting Speed (a=2)m/min	0-80 Frequency Conversion
Slewing Speed (r/min)	0-0.7 Frequency Conversion
Luffing Speed (m/min)	0-45 Frequency Conversion
Jacking-up Speed (m/min)	0.4
Motor total power	86.5
Total Weight (T)	78
Counter weight (T)	18.65
Base Form	Embed legs -Built-in Type
Container	640HQ+120GP

II. Remarks:
1. Warranty term: 12 months
2. Delivery term: 25 days
3. Price valid term: 60 days
III. Outstanding Features
The tower crane is a combination of advanced technologies of the present day. It is equipped with a hydraulic self-raising mechanism.

The electric control system of the tower crane adopts the advanced “PLC” control mode of the present day, which greatly improves the reliability, maneuverability and stability of the control system and the work efficiency of the tower crane.

The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter and multifunctional limiter to control the load moment, hoisting capacity and trolley traveling range. Its PLC (Programmable Logic Controller) unit can diagnose the cause of breakdowns.
The use of world-famous electric components such as OMRON, YASKAWA, Schneider (TE) and MEAN WELL greatly reduces the failure rate of the electric control system and improves the work efficiency of the users.
Besides, there are also electric safety devices like anemoscopes and obstacle lights and mechanical safety devices to prevent the breaking of trolley axles and wire ropes.

We hongda Tielishi are Chinese famous brand. Our tower crane has been exported to more than 50 countries and more than 300,000 users around the world.
